Don’t Let Rain Enter the Wrong Drain

If wet weather is overloading your municipal treatment plant, flow meters can spot source of problem.

< Back to All Insights

When the snow starts melting and spring rain begins to fall, it’s a refreshing sign that winter is coming to an end. However, this can be a difficult season for homeowners, wastewater departments, and elected officials.

Rainfall or “wet weather flows” add excess water into the sanitary sewer systems. This type of water belongs in storm water sewers, drainage ditches, or on the surface of the ground, not in sanitary sewers. Once in the sanitary sewer, this water causes a variety of problems including:

  • Basement backups
  • Sanitary sewer overflows
    • Regulatory agencies, such as the Iowa Department of Natural Resources (IDNR) and Illinois Environmental Protection Agency (IL – EPA) normally require these events to be reported due to potential health hazards from untreated sewage running down the street and/or into public water systems.
  • Wastewater treatment plants (WWTP) being pushed beyond capacity just to process the additional rain water
    • Flows can increase up to 10 times or more during wet weather events. This easily overwhelms WWTP processing equipment, which only has a certain hydraulic capacity. Plants are then required to either bypass the processing equipment and go right into a river, or transfer the water into a Flow Equalization Basin (FEB) to be processed on a drier day. Either way, increased treatment costs result as additional energy is used for the higher flows at the sewer plant.
  • Damage and/or destruction to sewers and WWTPs that require costly repairs

Flow Meters Find Where Rainfall is Getting into Sanitary Sewers

If wet weather flows are causing problems in your city, flow meters can be used to locate key sources of “inflow and infiltration” (I&I) of clear water (e.g. rain water) into sanitary sewers. Inflow happens when water goes directly into the sewers without touching soil, such as from house downspouts or parking lot storm drains. Infiltration is where rain water percolates through the soil, and then finds its way into sanitary sewers through cracks or holes in the pipes.

How Flow Meters Work

  1. Flow meters are small enough to be carried by hand and are hung on the steps of a manhole with the flow and level sensor at the bottom of a stainless-steel band. The sensor is set in the flow to measure its level and velocity, which readily translates into a calculated flow rate value.
  2. The meters are placed during a dry period to get a baseline reading.
  3. After one or two rain events, insight is gained regarding how much the flow numbers spike and how quickly they react to the beginning of a rain event and flows return to normal. The meters can then be moved to another manhole or “branch” of the sewer system until the I&I characteristics of the system have been adequately documented.
  4. The major inflow sources are now located and identified, and these are the sources that typically are most cost-effective to remove.

The use of sanitary sewer flow meters allows us to identify areas of inflow and infiltration and apply cost-effective solutions in time to avoid more extensive damage and expensive repairs. For example, if pipes are found to have storm sewer cross connects, area drains, or other inflow sources, the repairs are very low cost and significantly reduce I&I. In addition, if pipes are found to have cracks, holes, or other defects, a cured-in-place pipe (CIPP) liner can often times be applied inside the pipe, with holes cut in for service to houses and businesses. These cost-effective solutions can very often reduce the I&I problem before it grows, and pipes need to be completely replaced.

Case Study: Forgotten Field Tile Source of Community’s Basement Backups

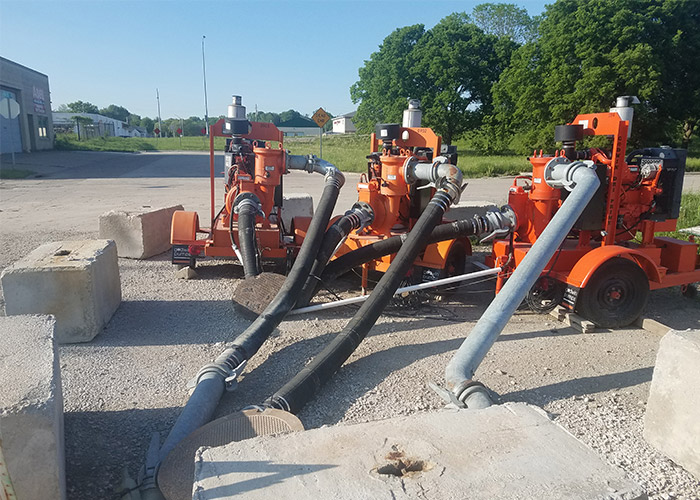

For several years, the Homestead Sanitary District (HSD) experienced basement backups during rain events. Prior to flow metering, the community hauled a mobile diesel pump to manholes to pump the water into drainage ditches each time it rained. Flow meters located areas where the flow readings spiked during rain events. Cameras were then placed in the pipes to pinpoint the exact location of the I&I. It was discovered that field tiles were tied into the sanitary sewer system. The tiles were disconnected and other repairs made. Since then, the HSD no longer needs to pump water from the manholes.

Flow Meters: To Own or Not to Own

Cities can purchase their own flow meters, but the capital expense may not be worth the investment due to the short timeframes the meters are needed and used. Hiring a consultant such as Shive-Hattery can be very beneficial because:

  • Consultants have the ability and software to process the large amounts of data and compile it into easy-to-understand graphics
  • The data may reveal the need for additional solutions, such as a redesign of the sanitary sewer system, which your consultant can provide.
  • Consultants can work with you to identify cost-saving alternatives by working with nearby communities and various suppliers. If both systems need similar corrective actions, the expense of the solution can often times be minimized for all parties. For example, a CIPP lining project could offer multiple benefits to more than one user group, offering cost savings to all.

If your community, city, and/or sanitary district deals with the inconvenience of pumping out manholes or cleaning up overflows at your wastewater treatment plant every spring, it’s time for a solution. Finding the source of the problem is the first step to fixing it, especially when it’s related to inflow and infiltration. Flow metering is a quick and cost-effective way to locate and determine the problems, ultimately identifying the best long-term solutions for you.
